How Robots Integrate with PLCs: Engineer’s 2026 Guide
Robot-PLC integration is the process of establishing direct communication and coordinated control between programmable logic controllers and robotic systems to achieve synchronized industrial automation. The PLC acts as the master decision-maker, managing workflow, fault recovery, and state monitoring, while the robot executes precise physical actions. Modern integration relies on protocols like PROFINET, EtherNet/IP, and EtherCAT, plus advanced interfaces like KUKA.mxAutomation and Siemens Simatic Robot Integrator. Understanding how robots integrate with PLCs correctly from the start determines whether a project ships on time or stalls in commissioning.
What communication protocols enable robot and PLC interoperability?
The communication protocol is the foundation of every robot-PLC integration project. PLCs orchestrate workflow and state monitoring while robots execute detailed actions, and stable real-time communication over industrial Ethernet makes that coordination possible. Signals as simple as start, busy, and done are mapped to PLC input/output bits, forming the backbone of every command cycle.
Selecting the PLC-native protocol drastically reduces engineering hours, simplifies commissioning, and eases long-term maintenance. Protocol mismatch is the primary cause of integration bottlenecks. Choosing the protocol your PLC already speaks eliminates gateway hardware, reduces latency, and gives your maintenance team a familiar diagnostic path.
The table below compares the five most common protocols used in robotic automation and PLCs today:
| Protocol | Typical Use Case | Compatible Robot Brands | Key Feature |
|---|---|---|---|
| PROFINET | Siemens-based cells | KUKA, ABB, FANUC | Real-time IRT mode for motion sync |
| EtherNet/IP | Rockwell/Allen-Bradley cells | FANUC CRX, Universal Robots | CIP safety extensions available |
| EtherCAT | High-speed motion control | KUKA, Yaskawa | Sub-millisecond cycle times |
| DeviceNet | Legacy discrete I/O | FANUC, older ABB | Low-cost wiring, limited bandwidth |
| PROFIBUS | Older Siemens installations | KUKA, ABB | Mature, widely supported in legacy plants |
FANUC CRX collaborative robots support all major industrial fieldbuses, including EtherNet/IP, PROFINET, CC-Link, DeviceNet, PROFIBUS, and EtherCAT. That breadth means a CRX can drop into a Rockwell or Siemens facility without infrastructure changes. IO-Link adds another layer by enabling granular device-level communication for sensors and actuators connected below the fieldbus, giving the PLC visibility into individual tool states without adding discrete wiring.
Pro Tip: Match the protocol to your PLC platform first, then verify robot compatibility. Never select a protocol based on robot preference alone.
How do KUKA.mxAutomation and siemens simatic robot integrator simplify control?
Advanced PLC interfaces represent the most significant shift in how robots work with PLCs over the past decade. Modern integration embeds robot kinematics and motion commands directly in PLCs using interfaces like KUKA.mxAutomation and Siemens Simatic Robot Integrator. The result is that robot motion becomes just another function block in the PLC program, no different from a conveyor drive or a valve sequence.
This approach delivers concrete advantages for engineering teams:
- Unified programming environment. Engineers write robot motion commands in the same ladder logic or structured text environment they already use for the rest of the cell.
- Reduced robot-side programming. Robot teach pendants become less critical for day-to-day operation. The PLC program drives the sequence.
- Multi-brand robot control from one platform. A single Siemens S7-1500 or Allen-Bradley ControlLogix can command KUKA, ABB, and FANUC robots in the same cell using the appropriate interface library.
- Operator familiarity. HMI screens built on the PLC platform give operators a single interface for the entire cell, reducing training time and error rates.
The Siemens Simatic Robot Integrator, for example, maps robot program calls to PLC function blocks so the PLC sends a motion job number and receives a completion signal. The robot controller handles path planning internally. This division of responsibility keeps the PLC in command without overloading it with kinematic calculations. For facilities already running production line automation components from Siemens or Rockwell, adopting these interfaces is a natural extension of existing infrastructure.
What are the practical steps for integrating robots with plcs?
Integration projects follow a defined lifecycle. Projects with complex system connections take 4 to 20 weeks, with key phases including commissioning, validation, Factory Acceptance Testing (FAT), and Site Acceptance Testing (SAT). Skipping or compressing any phase creates problems that surface during production, not during testing.

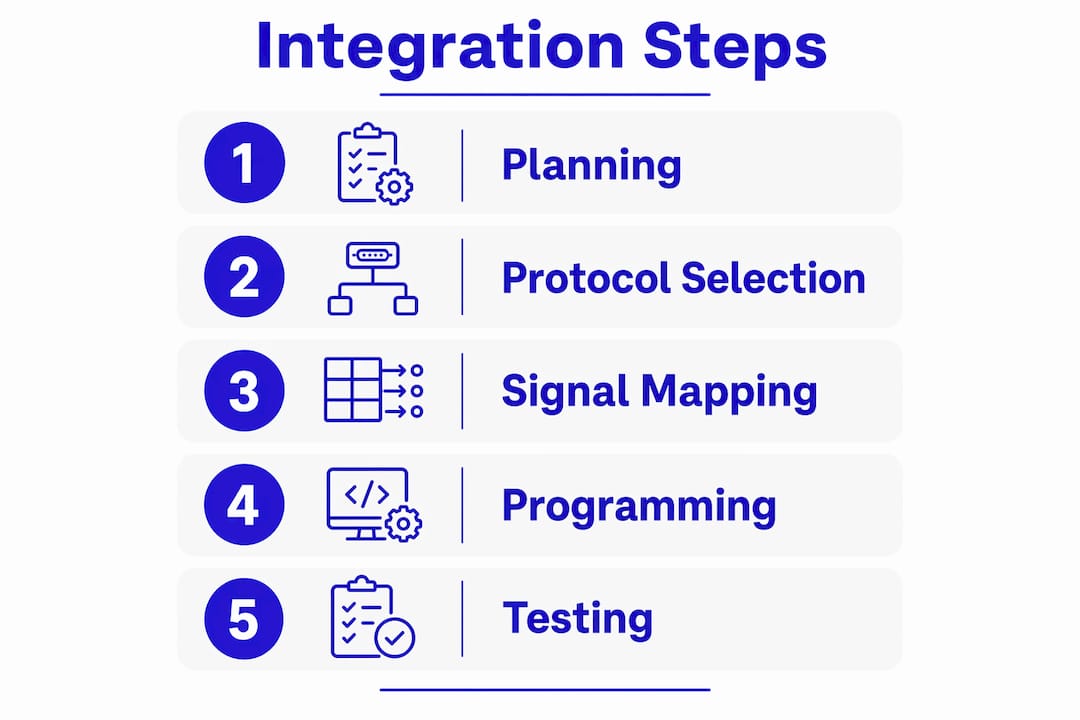

Follow this sequence for a structured integration:
- Define the architecture. Confirm the PLC model, robot brand, and communication protocol before any hardware is ordered. Document the signal list: every start, stop, fault, and status bit the PLC will exchange with the robot.
- Configure the network. Set IP addresses, subnet masks, and device names according to your protocol standard. For PROFINET, configure the GSD file in the PLC engineering tool. For EtherNet/IP, import the EDS file.
- Map tags consistently. Standardizing PLC tag naming on the robot interface is critical for efficient commissioning and debugging. A consistent naming convention like
ROB1_CMD_StartandROB1_STS_Busymakes signal tracing fast and unambiguous. - Program fault recovery logic. Fault recovery is often overlooked, causing unplanned downtime. The PLC program must handle robot resets, zone clearing, and partial cycle restarts, not just the normal production path.
- Conduct FAT at the integrator’s facility. Test every mode: auto, manual, fault, and recovery. Verify all signal handshakes under simulated production conditions.
- Complete SAT on site. Validate the full installation, including cable routing, grounding, and safety circuit continuity, before signing off.
Pro Tip: Build a signal mapping spreadsheet before writing a single line of PLC code. Every I/O bit between the PLC and robot should have a name, direction, data type, and description documented before commissioning begins.
A well-structured PLC program treats the robot as a state machine. The PLC sends a command, waits for the busy signal to clear, then checks the done or fault output before advancing the sequence. This handshake pattern is simple, but deviating from it is the most common source of timing errors in the field. For teams managing PLC maintenance schedules across multiple cells, consistent handshake patterns also make cross-cell troubleshooting far faster.
How does robot-plc integration improve safety and system reliability?
Safety is not a feature added at the end of an integration project. It is an architectural requirement built into the communication design from day one. Emergency stops, safety gates, and interlocks must be wired into the safety relay or safety PLC circuit and validated against ANSI/RIA R15.06, the primary standard governing industrial robot safety in the United States.
SAT must validate every E-stop and interlock in the as-installed configuration. A minor wiring change after FAT can compromise a safety rating if not re-verified. This is not a theoretical risk. Field modifications made during installation regularly introduce faults that only appear when a specific safety zone is triggered.
The table below outlines the key safety validation checkpoints for a typical robot cell:
| Checkpoint | Validation Method | Standard Reference |
|---|---|---|
| E-stop circuit continuity | Force E-stop, confirm robot and PLC halt | ANSI/RIA R15.06 |
| Safety gate interlock | Open gate during auto mode, verify stop | ISO 10218-2 |
| Speed and separation monitoring | Verify cobot speed reduction in shared zones | ISO/TS 15066 |
| Fault recovery sequence | Trigger fault, verify PLC-controlled reset | Internal SOP |
| Communication watchdog | Disconnect network cable, verify safe state | Protocol-specific |
“The PLC’s role as system master makes it the natural home for fault monitoring. When the robot reports a fault, the PLC decides whether to attempt an automatic recovery or require operator intervention. That decision logic must be explicit in the program, not left to default robot behavior.”
Close integration between the PLC and robot also accelerates fault detection. Because the PLC monitors every status bit in real time, it can detect a missed cycle or a stalled motion within one scan cycle, typically under 10 milliseconds. Faster detection means faster recovery and less scrap.
What common challenges arise in robot and PLC integration?
Protocol mismatch is the leading technical cause of integration delays. When a robot controller speaks EtherNet/IP natively but the PLC is configured for PROFINET, the team must add a protocol gateway, which introduces latency, an additional failure point, and extra configuration work. The fix is straightforward: choose the protocol native to your PLC before the robot is specified.
Beyond protocol selection, these issues appear most often on integration projects:
- Inconsistent tag naming. Without a master signal map, commissioning engineers spend hours tracing which PLC bit corresponds to which robot input. A single naming standard eliminates this entirely.
- Incomplete fault logic. Programs that only address the normal production path experience significant early production issues. Every fault mode needs an explicit PLC response.
- Multi-brand robot environments. Running KUKA and FANUC robots from the same PLC requires separate interface libraries and careful namespace management to avoid tag conflicts.
- Safety re-validation after changes. Any field modification to safety wiring or safety PLC configuration requires a full re-test of affected circuits before the cell returns to production.
- Firmware version mismatches. Robot controller firmware and PLC communication module firmware must be compatible. Always confirm version requirements before commissioning begins.
For teams managing legacy PLC systems alongside newer robot controllers, the challenge is often that older PLCs lack native support for modern Ethernet protocols. In those cases, a communication module upgrade or a protocol bridge is the most practical path forward.
Key takeaways
Successful robot-PLC integration requires the PLC to act as system master, with protocol selection, tag standardization, and fault recovery logic determined before commissioning begins.
| Point | Details |
|---|---|
| PLC as system master | The PLC controls workflow, fault recovery, and state monitoring while the robot executes motion. |
| Protocol selection is critical | Choose the protocol native to your existing PLC to reduce bottlenecks and simplify maintenance. |
| Tag naming prevents delays | Standardized PLC tag naming conventions cut commissioning time and eliminate trial-and-error debugging. |
| Fault logic must be explicit | Programs that skip fault recovery design cause unplanned downtime in early production. |
| SAT validates safety | Every E-stop and interlock must be re-validated in the as-installed configuration before go-live. |
What i’ve learned after years of watching robot integrations succeed and fail
The single most consistent mistake I see on robot-PLC integration projects is treating the robot as the intelligent system and the PLC as a simple trigger. That framing gets the architecture backwards. The robot is a node. The PLC is the brain. When engineers design with that hierarchy in mind, fault recovery becomes logical, operator interfaces become coherent, and the system behaves predictably under abnormal conditions.
The second mistake is deferring protocol selection until the robot is already on order. By then, the conversation becomes about what adapters are available rather than what architecture is correct. I have watched teams spend weeks configuring protocol gateways that would have been unnecessary if the protocol decision had been made in the first project meeting.
Fault recovery logic deserves more attention than it gets in most project scopes. Every integration I have seen go smoothly in production had explicit PLC logic for robot resets, partial cycle restarts, and zone clearing. Every integration that struggled in early production had a program that only worked when nothing went wrong.
Finally, do not underestimate SAT. It is not a formality. It is the only test that reflects actual installed conditions. Wiring changes made during installation, cable routing differences, and grounding variations all affect safety circuit behavior. Validate everything on site, every time.
— Monica
