What Is Industrial Ethernet? A 2026 Engineer’s Guide

Industrial Ethernet is a family of application-layer protocols and ruggedized networking hardware built to deliver deterministic, real-time communication in manufacturing and automation environments. Unlike standard office Ethernet, which simply moves data packets without timing guarantees, Industrial Ethernet protocols like EtherNet/IP, Profinet, and Modbus TCP impose strict control over timing, synchronization, and data exchange at OSI Layer 7. The physical hardware is equally specialized: shielded CAT5e and CAT6 cables, M12 connectors, and managed switches rated for temperature extremes, vibration, and electromagnetic interference. For engineers integrating PLCs, HMIs, drives, and sensors into a single network, understanding the industrial Ethernet definition means understanding both the protocol stack and the hardware requirements that make reliable control possible.

What is industrial ethernet and how does it differ from regular ethernet?

Industrial Ethernet is not a separate physical standard but a family of application-layer protocols that run over standard IEEE 802.3 Ethernet frames. Standard Ethernet handles Layers 1 and 2 of the OSI model: the physical transmission of bits and the framing of data packets. Industrial Ethernet adds Layers 3 through 7, defining exactly how control data is structured, scheduled, and delivered to devices like PLCs and servo drives.

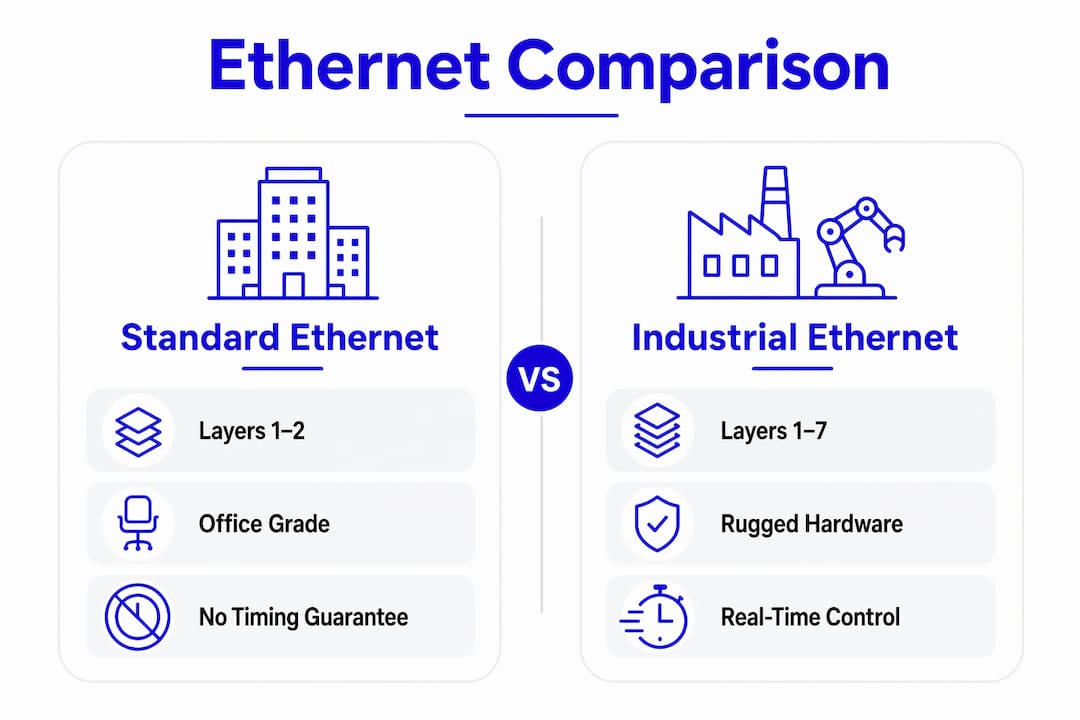

The table below captures the most important distinctions between the two:

Feature	Standard Ethernet	Industrial Ethernet
OSI layers addressed	Layers 1–2	Layers 1–7
Timing guarantees	None	Deterministic (microsecond-level)
Hardware	Commercial RJ45, unshielded	M12 connectors, shielded CAT5e/CAT6
Environmental rating	Office conditions	Vibration, EMI, temperature extremes
Switch management	Basic	VLANs, QoS, redundancy protocols
Typical protocols	TCP/IP, HTTP	EtherNet/IP, Profinet, Modbus TCP

Physical layer differences go beyond connector style. Industrial managed switches support VLANs, port security, and Quality of Service settings that prioritize time-critical control traffic over lower-priority data. Standard commercial switches lack these features or implement them inconsistently, which creates unpredictable latency in control loops.

The environmental hardening is equally significant. Industrial Ethernet hardware is designed to withstand temperature swings from below freezing to above 70°C, continuous vibration from nearby machinery, and electromagnetic interference from motors, variable frequency drives, and high-current switching equipment. A standard office switch placed near a 480V motor drive will fail or produce corrupted data within weeks. The M12 connector standard provides a locking, sealed connection that resists moisture, dust, and mechanical stress that would destroy an RJ45 plug.

How does industrial ethernet work in automation and manufacturing systems?

Industrial Ethernet networks connect every major control device on a manufacturing floor: PLCs, HMIs, sensors, actuators, servo drives, and variable frequency drives. The network carries two distinct types of traffic. Cyclic data, such as position feedback from a servo or a digital input state from a sensor, moves on a fixed, repeating schedule measured in milliseconds or microseconds. Acyclic data, such as parameter changes or diagnostic reads, travels on demand without strict timing.

The protocols that manage this traffic each take a different approach to determinism:

EtherCAT uses a distributed clock architecture where each node reads and writes data as a single Ethernet frame passes through the network. This produces synchronization at the microsecond level, making it the preferred choice for multi-axis motion control.
Profinet IRT (Isochronous Real-Time) reserves dedicated time slots within each network cycle for time-critical data, separating it from standard TCP/IP traffic on the same physical cable.
EtherNet/IP uses the Common Industrial Protocol (CIP) over standard TCP/UDP, making it highly compatible with Allen-Bradley and Rockwell Automation systems and scalable across star topologies.
Modbus TCP wraps the classic Modbus register model inside TCP/IP packets, offering straightforward integration with SCADA systems and legacy devices.

Real-time protocols like EtherCAT and Profinet IRT provide microsecond-level scheduling, which is non-negotiable for motion control applications where a 1-millisecond timing error can cause mechanical damage or product defects.

Network topology matters as much as protocol selection. Ring topologies with Media Redundancy Protocol (MRP) or Device Level Ring (DLR) allow the network to reroute traffic within milliseconds if a cable or switch fails. Star topologies offer simpler management and work well with EtherNet/IP, where timing requirements are less stringent. Many large plants use a hybrid approach: a ring backbone connecting managed switches, with star segments feeding individual machine cells.

Pro Tip: When designing a new Industrial Ethernet segment, map your worst-case cycle time requirement first. If any axis or control loop demands sub-millisecond synchronization, EtherCAT or Profinet IRT is the only viable choice. Choosing EtherNet/IP for a high-speed motion application because it is familiar will produce intermittent faults that are extremely difficult to diagnose.

What are the key benefits of industrial ethernet?

The benefits of Industrial Ethernet over traditional fieldbus networks like DeviceNet, Profibus, or FOUNDATION Fieldbus are substantial, and they compound as plant complexity grows.

Higher bandwidth. Standard fieldbus networks top out at 12 Mbit/s. Industrial Ethernet runs at 100 Mbit/s or 1 Gbit/s, supporting high-resolution vision systems, large parameter datasets, and simultaneous control and diagnostic traffic without congestion.
Deterministic real-time control. Industrial Ethernet protocols like CIP, Profinet, and Modbus operate at the application and transport layers, giving engineers precise control over timing that fieldbus networks cannot match at scale.
Vendor interoperability. A single Industrial Ethernet backbone can carry EtherNet/IP traffic to Allen-Bradley PLCs, Profinet traffic to Siemens drives, and Modbus TCP traffic to a SCADA server simultaneously. Fieldbus required separate physical networks for each vendor ecosystem.
Reduced wiring complexity. Standard Ethernet cabling replaces multiple proprietary cable types, cutting installation cost and simplifying troubleshooting. A single CAT6 run can carry both control and diagnostic data.
Industry 4.0 integration. Industrial Ethernet serves as the communication backbone for Industry 4.0, connecting shop floor devices directly to Manufacturing Execution Systems (MES) and IT infrastructure in real time. This connectivity enables production data to flow from a sensor on a press to an ERP system without manual data entry or protocol conversion.

The scalability advantage is particularly relevant for plants running legacy GE Fanuc Series 90-30 or RX3i systems alongside newer equipment. A Series 90-30 Ethernet network interface allows older GE Emerson controllers to participate in a modern Industrial Ethernet network without replacing the entire control system, protecting capital investment while gaining modern connectivity.

What are the practical considerations for implementing industrial ethernet networks?

Protocol selection is the first decision, and it should be driven by application requirements rather than vendor preference. EtherNet/IP suits PLC communication and process control, Profinet excels at motion control with its IRT variant, and Modbus TCP covers SCADA integration and simpler device communication. Mixing protocols on one network is possible but requires careful VLAN segmentation to prevent timing interference between traffic classes.

Cabling and connector selection directly affects long-term reliability. Shielded CAT5e or CAT6 cable with continuous shield continuity from device to switch is the minimum standard in any environment with motor drives or welding equipment. Proper grounding and shield continuity are critical to maintaining noise immunity and signal integrity. A single unshielded patch cable introduced by a technician during maintenance can inject enough noise to disrupt an entire control segment.

Switch selection deserves the same rigor as PLC selection. Industrial managed switches from manufacturers like Cisco IE, Moxa, or Hirschmann provide the VLAN, QoS, and redundancy features that control networks require. Placing a commercial IT switch in a control cabinet because it was available is a common and costly mistake.

Implementation Factor	Recommended Practice
Protocol selection	Match to application: EtherNet/IP, Profinet IRT, or Modbus TCP
Cabling	Shielded CAT5e/CAT6 with M12 connectors in harsh zones
Switch type	Industrial managed switch with VLAN and QoS support
Topology	Ring with MRP/DLR for redundancy; star for simpler segments
Timing verification	Validate cycle times against protocol specifications before commissioning

Overuse of complex switch features like MRP and DLR can cause broadcast storms and latency spikes if misconfigured. Every redundancy feature added to a network must be tested under load before the system goes live. Timed verification, where you measure actual cycle times against your protocol’s specification, is the only way to confirm the network performs as designed.

Pro Tip: Before commissioning any Industrial Ethernet segment, run a network analyzer like Wireshark or a protocol-specific tool like Profinet Inspector for at least 24 hours under production-representative load. Intermittent broadcast storms and timing violations only appear under realistic traffic conditions, not during a five-minute bench test.

For engineers working with GE Emerson hardware, the IC693CMM321 Modbus EGD Ethernet module provides both Modbus TCP and Ethernet Global Data (EGD) communication from a Series 90-30 rack, covering both SCADA integration and peer-to-peer PLC communication from a single module.

Key takeaways

Industrial Ethernet delivers deterministic, real-time control by combining ruggedized hardware with application-layer protocols that standard Ethernet does not provide.

Point	Details
Protocol stack is the core distinction	Industrial Ethernet adds OSI Layer 7 protocols like EtherNet/IP and Profinet over standard IEEE 802.3 frames.
Hardware hardening is non-negotiable	Shielded CAT5e/CAT6 cable, M12 connectors, and industrial managed switches are required in harsh environments.
Protocol choice drives topology	EtherCAT and Profinet IRT require strict topology compliance; EtherNet/IP supports more flexible star designs.
Fieldbus replacement brings real gains	Higher bandwidth, vendor interoperability, and direct MES integration are concrete advantages over legacy fieldbus.
Verification prevents costly failures	Testing cycle times and redundancy behavior under load before commissioning is the single most effective risk reduction step.

Why most industrial ethernet failures trace back to one overlooked separation

After working through dozens of Industrial Ethernet deployments across manufacturing plants, the pattern that causes the most failures is consistent: engineers treat physical robustness and protocol determinism as a single problem when they are actually two separate ones. You can install perfectly shielded CAT6 cable with M12 connectors throughout a facility and still get timing violations if the switch configuration does not prioritize control traffic correctly. Conversely, a perfectly configured Profinet IRT network will fail unpredictably if a technician replaces a failed industrial switch with a commercial IT switch from the IT closet.

The separation matters because the solutions are different. Physical robustness is solved at procurement: buy the right cable, connectors, and switches for the environment and do not substitute. Protocol determinism is solved at design and commissioning: verify timing requirements, configure QoS correctly, and test under load. Treating them as one problem leads to throwing hardware at a configuration issue or reconfiguring a network that actually has a bad cable.

My other strong opinion is that engineers underestimate how much damage a single misconfigured redundancy feature can do. I have seen a single MRP ring with one switch that had an incorrect ring port assignment take down an entire production line for six hours. The fix took four minutes once the root cause was identified. The timing and topology verification step that would have caught it takes about two hours during commissioning. That trade-off is not a close call.

The engineers who get Industrial Ethernet right are the ones who treat it as a control system discipline, not an IT networking task. The protocols, the hardware selection, and the testing methodology all come from the control engineering side of the house. Handing it to the IT department because it uses Ethernet cables is how plants end up with production-critical networks managed by people who have never heard of EtherCAT.

— Monica
