Horner Electric: Legacy Automation Guide for Maintenance Teams

Horner Electric is defined as a manufacturer of integrated programmable controllers that combine PLC logic, HMI displays, and I/O into a single unit, making it a practical choice for plants running legacy industrial automation systems. The company, operating as Horner Automation, builds its entire product line around one programming tool: Cscape software. That single platform covers every controller family the company makes, from compact Foundation units to full Canvas and XL Prime models. For maintenance professionals managing older machines, that consistency is the most valuable thing Horner Electric offers. Add OCS360 Remote for cloud-based diagnostics, and you have a system designed to cut unplanned downtime without requiring a full controls overhaul.

What does Horner Electric do for legacy industrial automation?

Horner Electric produces all-in-one programmable controllers that integrate PLC logic, HMI touchscreens, and I/O in one enclosure. That architecture removes the need for separate HMI panels and communication bridges, which are common failure points in aging systems. The product line also includes modular controllers for panel-based installations where a local display is not needed, plus a wide range of I/O expansion devices.

The core value for legacy system maintenance is consistency. Every Horner controller, regardless of age or model, runs on Cscape. That means a technician trained on one Horner unit can troubleshoot any other Horner unit without relearning a new software environment. For plants with mixed controller vintages across multiple production lines, that consistency directly reduces the time spent diagnosing faults.

Horner Automation also provides free access to Cscape, which lowers the barrier for smaller maintenance teams. There are no per-seat licensing costs to worry about when cross-training staff or adding a new technician to the team.

How does Cscape reduce downtime across Horner controller families?

Cscape’s unified environment reduces training time and support complexity across the entire Horner controller family. A single software tool covers the Foundation, Micro, XL Prime, Canvas, and Modular CPU lines. That means one set of project files, one backup format, and one troubleshooting workflow for every machine on the floor.

The practical impact on maintenance is significant. When a technician opens a Cscape project from a five-year-old XL Prime and compares it to a newer Canvas unit, the structure is familiar. There is no translation layer, no format conversion, and no relearning curve. That familiarity cuts fault diagnosis time, especially during night shifts when senior engineers may not be available.

Cscape also supports reuse of program artifacts across controller types. Logic blocks, tag databases, and screen designs built for one controller can be adapted for another. For plants that are gradually replacing aging units with newer Horner models, this means the existing program library stays useful rather than becoming obsolete.

Foundation controllers: compact, entry-level units for simple machine control
Micro controllers: small footprint, suited for space-constrained panels
XL Prime controllers: mid-range units with expanded I/O and display options
Canvas controllers: high-performance units with advanced networking and remote access
Modular CPU controllers: panel-based systems compatible with OCS-I/O Series and HMI Connect Displays

Pro Tip: Keep a master Cscape project archive organized by machine name and firmware version. When a controller fails at 2 a.m., having the correct project file ready cuts recovery time from hours to minutes.

What are the key controller features and networking options?

Horner’s controllers support RS-485, CAN, Ethernet, CANopen, DeviceNet, Profibus, Industrial Ethernet, and EtherNet/IP scanner options. That breadth of protocol support is the reason Horner hardware integrates cleanly into both legacy fieldbus networks and modern Ethernet-based architectures. A plant running DeviceNet on older equipment and EtherNet/IP on newer cells does not need a gateway device to connect Horner controllers to both networks.

The modular controller line adds another layer of flexibility. Modular controllers work with OCS-I/O Series expansion racks and HMI Connect Displays, making them well suited for complex panel builds where the controller and display are physically separated. That architecture is common in large machine cabinets and process control panels.

Controller Type	Best Use Case	Display	Key Protocol Support
All-in-one (XL Prime, Canvas)	Machine control with local HMI	Built-in touchscreen	Ethernet, CAN, RS-485, EtherNet/IP
Modular CPU	Panel-based, no local display needed	HMI Connect Display (separate)	CANopen, DeviceNet, Profibus
Foundation / Micro	Simple, compact applications	Small built-in display	RS-485, CAN

Protocol consistency across controller generations is what makes Horner hardware practical for legacy maintenance. When you replace a failed unit, the new controller speaks the same fieldbus language as the rest of the network. There is no reconfiguration of downstream devices, and no risk of breaking communication with sensors or drives that have been running for a decade.

Pro Tip: Before ordering a replacement Horner controller, confirm the exact communication ports on the failed unit. Some older models use RS-485 where newer equivalents default to Ethernet. Matching the port configuration saves a rewiring job.

How does OCS360 Remote cut maintenance response time?

OCS360 Remote enables secure cloud-based access to Horner controllers without additional gateways or complex router configurations. The tool uses a secure tunnel framework, meaning the controller initiates the outbound connection rather than requiring an open inbound port on the plant firewall. That architecture satisfies most industrial cybersecurity policies without requiring IT department involvement for every service call.

The live programming mode is the feature that directly cuts downtime. Instead of uploading the entire program to make a change, live programming downloads only the changed parts. The machine stays running during the update, and the service window shrinks from a planned shutdown to a brief, targeted intervention. For legacy systems where a full program transfer might take several minutes, that difference is meaningful.

Setting up OCS360 Remote requires a specific software and firmware baseline:

Install Cscape v10.2 SP1 or later on the engineering workstation. Earlier versions do not support the OCS360 connection protocol.
Confirm firmware version on the target controller. Canvas and XL Prime controllers require firmware v17.3 or later to use remote live programming and diagnostics.
Register the controller in OCS360 using the cloud portal. Each controller gets a unique identifier tied to the OCS360 account.
Test the connection from a remote workstation before a live fault occurs. Verifying the tunnel works during a planned maintenance window prevents surprises during an emergency.
Use live programming mode for all remote changes. Avoid full project downloads over a remote connection unless the machine is already stopped.

Pro Tip: Run a firmware audit across all Horner controllers on your site before enabling OCS360 Remote. Controllers below v17.3 will need a planned firmware update before remote live programming is available. Schedule those updates during your next preventive maintenance window.

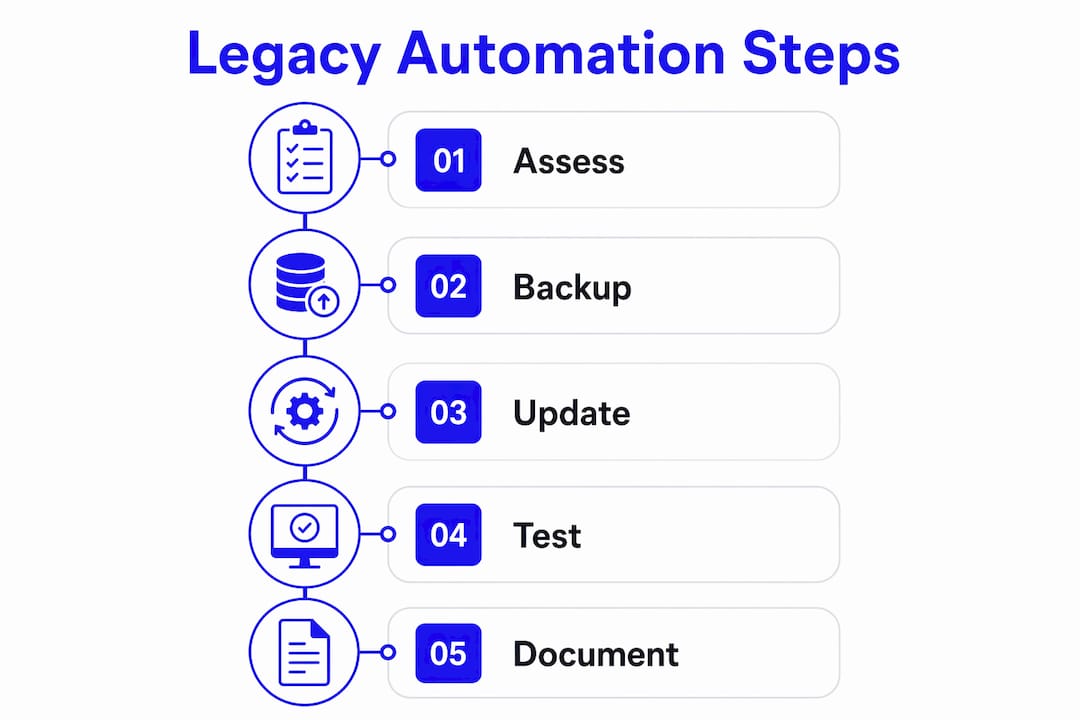

What are the best practices for legacy Horner Electric system maintenance?

Firmware alignment is the single most important prerequisite for remote maintenance. Proactive firmware management is critical because a controller running outdated firmware cannot use OCS360 Remote’s live programming features. Maintenance teams that skip firmware updates lose access to the fastest repair method available.

Applying only incremental updates through live programming mode is the best practice for minimizing downtime during repairs. A full program transfer takes the controller offline for the duration of the download. A targeted change to a single function block or output rung takes seconds. The difference between the two approaches can mean the difference between a two-minute fix and a 20-minute production stop.

Back up every Cscape project after any program change, not just after major modifications. Small undocumented edits are the most common cause of “mystery” faults six months later.
Label firmware versions in your project archive. A project file saved without a firmware version note becomes a liability when you need to restore a controller quickly.
Cross-train at least two technicians on Cscape for every production line. Single points of knowledge failure are as dangerous as single points of hardware failure.
Avoid full remote program downloads on running machines. Use live programming mode for targeted changes and reserve full transfers for planned shutdowns.
Test OCS360 Remote connections monthly, even when no fault is present. A tunnel that has not been tested is a tunnel you cannot trust in an emergency.

Scheduling firmware updates strategically matters as much as doing them at all. A firmware update that goes wrong during peak production is worse than running a slightly older version for another month. Tie firmware updates to your existing preventive maintenance calendar so the risk is contained and the team is prepared.

Key Takeaways

Horner Electric’s unified Cscape platform and OCS360 Remote tools give maintenance teams the fastest path to minimizing legacy system downtime when firmware is current and program backups are organized.

Point	Details
Cscape covers all controller families	One software tool supports Foundation, Micro, XL Prime, Canvas, and Modular CPU lines.
OCS360 Remote requires firmware v17.3+	Canvas and XL Prime controllers must run firmware v17.3 or later for live remote programming.
Live programming cuts service time	Downloading only changed program parts keeps machines running during most repairs.
Protocol breadth protects legacy networks	Support for DeviceNet, Profibus, CANopen, and EtherNet/IP prevents communication rewiring on replacements.
Firmware audits prevent remote access failures	Proactive firmware updates are the prerequisite for using OCS360 Remote during emergencies.

Why firmware discipline is the real differentiator in Horner maintenance

I have worked with enough legacy automation systems to know that the tool is rarely the problem. The problem is the gap between what the tool can do and what the team has prepared for. Horner Electric’s platform is genuinely well designed for maintenance professionals. Cscape is free, it covers every controller the company makes, and OCS360 Remote is one of the cleaner remote access implementations I have seen in industrial automation. The secure tunnel approach avoids the firewall arguments that kill remote access projects at half the plants I visit.

But the firmware requirement for OCS360 Remote catches teams off guard more often than it should. A Canvas controller sitting at firmware v16 is a controller you cannot reach remotely in a crisis. The fix is straightforward: audit your firmware versions now, schedule the updates during your next planned downtime, and document the results. That one afternoon of work unlocks the fastest repair method in the Horner toolkit.

The other thing I would push back on is the assumption that unified software means zero training investment. Cscape is consistent, but consistency is only valuable if your team actually knows the tool. Cross-training two technicians per line on Cscape is not optional. It is the difference between a 15-minute remote fix and a four-hour wait for the one person who knows the system.

Horner’s approach to legacy automation is sound. The controllers are built to last, the protocol support is broad enough to survive network upgrades, and the software is free. The teams that get the most out of it are the ones that treat firmware management and program backups as non-negotiable maintenance tasks, not afterthoughts.

— Monica

Sourcing Horner Electric parts and legacy automation components

When a Horner controller fails and the OEM lead time runs to weeks, having a reliable secondary market source is what keeps the line running. Industrialpartsusa stocks surplus, used, and remanufactured industrial automation parts, including legacy components that are no longer readily available from original manufacturers.

Every part ships with a one-year warranty backed by Industrialpartsusa’s own testing and repair process. Same-day shipping is available on in-stock items, which matters when a production line is down. The catalog covers Horner Electric components alongside GE Fanuc Series 90-30, Allen-Bradley PLCs, and a wide range of legacy automation parts from brands including Mitsubishi, Omron, and ABB. For maintenance teams that cannot wait on OEM timelines, Industrialpartsusa is a practical first call. You can also review the secondary market buyer’s guide to understand what to check before purchasing surplus automation hardware.

FAQ

What is Horner Electric’s main product line?

Horner Electric, operating as Horner Automation, produces all-in-one programmable controllers that combine PLC logic, HMI displays, and I/O in a single unit. The product line also includes modular controllers and I/O expansion devices for panel-based industrial applications.

What software do Horner Electric controllers use?

All Horner controllers are programmed using Cscape, a single unified software platform available at no cost. Cscape supports every controller family Horner makes, including Foundation, Micro, XL Prime, Canvas, and Modular CPU models.

What firmware version does OCS360 Remote require?

OCS360 Remote requires firmware version 17.3 or later on Canvas and XL Prime controllers to enable live remote programming and diagnostics. Controllers running earlier firmware versions must be updated before OCS360 Remote features become available.

How does live programming mode reduce downtime?

Live programming mode downloads only the changed portions of a program to the controller, rather than transferring the entire project. This keeps the machine running during most repairs and reduces service time compared to a full program transfer.

Where can I source replacement parts for legacy Horner Electric systems?

Industrialpartsusa stocks surplus and remanufactured Horner Electric components with same-day shipping on in-stock items. Parts come with a one-year warranty backed by in-house testing, making it a practical option when OEM lead times are too long.
