Aging Automation System Audit Checklist for Plant Engineers
Running a plant on aging automation equipment is a calculated risk that compounds quietly over time. This aging automation system audit checklist gives manufacturing engineers and MRO teams a structured framework to find hidden failure points before they become production stops. You will cover the technical metrics that matter, the documentation gaps that cause chaos at the worst possible moment, and how to turn what you find into a prioritized maintenance and replacement roadmap. Whether you’re auditing GE Fanuc Series 90-30 racks, Allen-Bradley PLCs, or legacy HMIs from any era, this checklist applies.
Table of Contents
- Key Takeaways
- 1. Your aging automation system audit checklist framework
- 2. Lifecycle mapping before technical evaluation
- 3. Technical checklist for PLCs, CPUs, and memory
- 4. Network and communications assessment
- 5. Control hardware and environmental condition checks
- 6. Documentation and tribal knowledge audit
- 7. Comparing manual and AI-assisted audit approaches
- 8. Turning findings into a prioritized maintenance roadmap
- 9. Sustaining audit quality and future readiness
- My honest take on aging system audits
- Sourcing the parts your audit uncovers
- FAQ
Key Takeaways
| Point | Details |
|---|---|
| Use a structured framework | A nine-section audit structure covers all hidden risk areas from visibility to future readiness. |
| Measure five core metrics | Track PLC scan margin, CPU and memory use, network latency, packet loss, and alarm frequency to catch failures early. |
| Map lifecycle status first | Classify every asset as Active, Mature, Obsolete, or High-Risk before diving into technical checks. |
| Convert findings to work orders | Audit results that don’t generate tracked corrective actions deliver no real plant reliability benefit. |
| Document what you know | Tribal knowledge dependence is a hidden risk. Reconcile system configs regularly to protect against personnel turnover. |
1. Your aging automation system audit checklist framework
A solid aging automation system audit checklist is not a single long list. A 2026 audit structure organizes findings across nine sections: System Visibility, Reliability and Downtime Risk, Documentation and Handover, Control Hardware Condition, System Ownership, Issue Response, Complexity vs. Simplicity, Future Readiness, and Compliance Posture. Each section targets a distinct failure domain, which prevents findings from piling into a single undifferentiated list that no one acts on.
The evaluative foundation rests on five technical metrics you measure for every PLC and controller in scope. These five metrics are PLC scan time margin, CPU and memory utilization, network latency, packet loss rate, and nuisance alarm frequency. Think of them as vital signs. A GE Fanuc IC693CPU350 running at 85% CPU utilization might still be operational, but it has almost no headroom before a scan time overrun trips a fault.
Risk-based prioritization comes before any wrench turns. Treating every finding equally means the genuinely dangerous conditions sit in the same queue as housekeeping items. Separate your audit sections by criticality to production, assign preliminary severity scores, and let those scores drive the work order sequence.
Pro Tip: Before your walkdown, build a one-page asset register that lists each controller, its approximate install year, the last firmware update, and the name of the engineer who knows it best. That last column will tell you more about your documentation risk than any questionnaire.
2. Lifecycle mapping before technical evaluation
Most audits fail because they treat automation hardware as isolated components rather than as assets moving through a defined lifecycle. Mapping assets into four categories before technical evaluation prevents emergency retrofits and delivers budget predictability.
The four lifecycle statuses work like this. Active means the OEM still manufactures and supports the product. Mature means production has ended but spare parts remain available through surplus channels. Obsolete means parts are scarce and repair is the primary support path. High-Risk means the system is one failure away from an unplanned production stop with no fast replacement path.
A GE Fanuc Series 90-70 rack running a critical mixing line is textbook High-Risk in most plants today. The OEM discontinued the line years ago, and while surplus inventory exists, lead times are unpredictable if you haven’t already stocked spares. Identifying that status before your technical walkdown tells you exactly how much scrutiny to apply and what failure mode you cannot afford.
3. Technical checklist for PLCs, CPUs, and memory

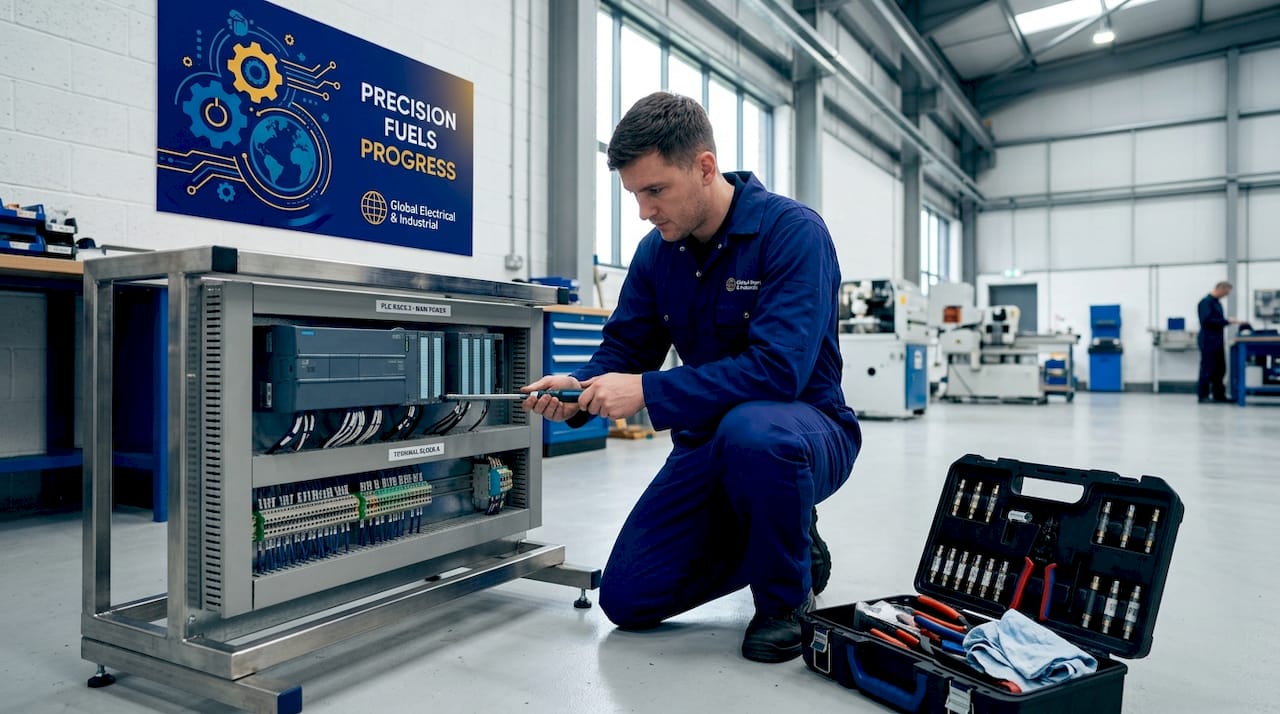

Work through each controller methodically. For every PLC and CPU module, record the following.
- CPU utilization percent at peak production load, not idle. Anything above 70% warrants a flag for further review.
- Available scan time margin. If your program scan is consuming more than 80% of the watchdog timer period, you are one ladder rung addition away from a fault.
- Memory utilization. Note both program memory and data table memory separately. Legacy controllers like the GE Fanuc IC693CPU352 have fixed memory pools that cannot be expanded.
- Battery voltage and last replacement date. A dead battery on a Series 90-30 means a complete program loss on the next power cycle.
- Firmware and OS revision. Cross-reference against known vulnerability lists and OEM end-of-life notices.
- Error log history. Pull the diagnostic buffer and look for recurring fault codes that indicate intermittent hardware failures.
- Physical condition of the CPU module. Check for corrosion on connector pins, capacitor bulging, and heat discoloration on the board.
For I/O modules and racks, note any failed or suspect channels, check terminal block screw torque, and look for evidence of water ingress or thermal cycling damage.
Pro Tip: Pull the diagnostic buffer data at three different points during the shift, not just once. Intermittent faults that clear themselves before your walkdown will still show up in the log timestamps. That pattern is the real finding.
4. Network and communications assessment
Network health is where aging automation systems show their age fastest, yet it gets the least structured attention during most facility audits. Five technical metrics must be evaluated: PLC scan time margin, CPU and memory use, network latency, packet loss, and alarm frequency. Of those, network latency and packet loss on older Ethernet and serial backbones deserve serious scrutiny.
For each network segment in your control system, record round-trip latency between the PLC and the SCADA or HMI at both low-load and peak-load conditions. A network that behaves well at 2 a.m. but drops packets during morning startup is not a stable network. Test it when the plant is actually running.
Check nuisance alarm frequency by reviewing the alarm historian for any single tag that fired more than ten times in a single shift without operator acknowledgment and corrective action. Nuisance alarms are a lagging indicator of sensor degradation, incorrect setpoints, or controller instability. High nuisance alarm rates also indicate that operators have been trained to ignore alarms, which is how process upsets become incidents.
5. Control hardware and environmental condition checks
The physical environment around your automation hardware accelerates failure in ways that software metrics will never capture. Walk each control panel and record the following conditions.
- Ambient temperature inside the enclosure at the hottest point during peak production. If it exceeds the rated operating temperature of any installed module by even a few degrees consistently, you have a reliability problem.
- Evidence of harmonic distortion on power supply inputs. Aging drives and transformers create harmonics that degrade PLC power supply capacitors over years of continuous operation.
- Cleanliness of cooling fans, vents, and heat sinks. A plugged fan filter on a GE RX7i rack will raise internal temperatures by 15 to 20 degrees Fahrenheit before any alarm triggers.
- Wire and terminal condition. Look for insulation brittleness, heat discoloration, and loose connections on critical control circuits.
- Enclosure seal integrity. Any evidence of condensation, rust streaks, or insect intrusion on the back panel means the environmental sealing has failed.
Cross-reference your production line automation components against the physical findings here. If a module is physically degraded and also sits in the Obsolete lifecycle category, that combination defines your highest-priority replacement candidates.
6. Documentation and tribal knowledge audit
Hidden risk often arises from incomplete documentation and tribal knowledge dependence. In most plants, the person who built the original PLC program is either retired, in a different role, or working for a different company. Your documentation audit needs to answer one blunt question: if your most experienced controls engineer left tomorrow, could the remaining team recover from a CPU failure?
Check for the following in your documentation review.
- Current, backed-up copies of all PLC programs with version control and change history.
- As-built wiring diagrams that match the actual panel configuration, not the configuration from the original commissioning.
- Network topology diagrams that accurately reflect the current switch and cable layout.
- Calibration records and setpoint change logs for all critical control loops.
- Recovery procedures for each controller that specify the exact steps to restore operation after a CPU swap.
Any gap in that list represents a tribal knowledge risk. When your most experienced technician is the documentation system, you are one retirement away from a very expensive troubleshooting exercise.
7. Comparing manual and AI-assisted audit approaches
Traditional manual audits are slow, inconsistent, and heavily dependent on the skill level of the individual conducting the walkdown. AI-powered CMMS integration can reduce audit preparation from weeks to hours, cutting downtime by 40% and improving maintenance efficiency by 60% in facilities that have adopted it. That is a significant operational gap between what plants running manual audit processes experience and what early adopters are achieving.
| Audit Method | Speed | Consistency | Finding-to-Action Time | Coverage |
|---|---|---|---|---|
| Manual walkdown | Slow (days to weeks) | Varies by technician | Often weeks or never | Sampling-based |
| AI-assisted CMMS | Fast (hours to days) | Standardized | Automated work orders | Near-complete |
| Hybrid approach | Moderate | High with templates | Days with tracking | Comprehensive |
Audit software tools automate scheduling, reporting, and evidence collection, improving audit speed by 30 to 40% and reducing manual errors through standardized data capture. The practical recommendation for most manufacturing plants is a hybrid approach. Use structured digital templates to standardize the walkdown, automated data logging where instrumentation supports it, and manual expert judgment for the physical hardware conditions that sensors cannot evaluate.
AI-enabled pattern recognition shifts the auditor’s role from collecting routine data to reviewing meaningful exceptions. That is a better use of your senior engineer’s time than transcribing alarm counts.
8. Turning findings into a prioritized maintenance roadmap
An audit that produces a report nobody acts on is just documentation overhead. Risk-based prioritization by downtime cost, failure impact, and replacement lead time converts raw findings into a capital planning document that finance and operations can both read.
After your audit, sort findings into three tiers.
- Tier 1 (Act within 30 days): Any finding where failure means unplanned production downtime, safety exposure, or a part with a lead time longer than your acceptable outage window.
- Tier 2 (Act within 90 days): Degraded conditions that are currently operating within spec but trending toward failure within one to two production cycles.
- Tier 3 (Plan for next budget cycle): Items that are aging but stable, with available parts and manageable replacement windows.
Findings that don’t convert to tracked work orders with deadlines and assigned owners will age without corrective action. That is how good audits produce bad outcomes. Use your CMMS to create work orders directly from the audit findings, assign ownership, and set review dates.
Pro Tip: For any Tier 1 finding involving a legacy or obsolete controller, start sourcing spare parts at the same time you open the work order. Procurement lead time for surplus GE Fanuc or Allen-Bradley hardware can range from same-day to several weeks depending on availability. Don’t let the repair schedule wait on the parts search.
9. Sustaining audit quality and future readiness
A single audit event is a snapshot. Real reliability comes from treating your aging automation assessment as a continuous process with scheduled review intervals.
Build these practices into your ongoing program.
- Schedule full system audits annually and interim mini-audits quarterly for Tier 1 and Tier 2 assets.
- Implement periodic system configuration reconciliation to catch unauthorized program changes or undocumented modifications before they become troubleshooting mysteries.
- Use continuous health monitoring tools where your infrastructure supports it. Trend the five core metrics over time, not just at point-in-time audit dates.
- Maintain an updated spare parts inventory that maps directly to your Obsolete and High-Risk assets. Know what you have on the shelf before you need it at 2 a.m. on a Sunday.
- Structure your audit documentation for regulatory review readiness. If an inspector asks for your change history or calibration records, they should be available within minutes, not days.
My honest take on aging system audits
I’ve watched plants run the same audit process for fifteen years and wonder why their reliability metrics never improve. The audit happens, the report gets filed, and the findings sit in a spreadsheet until the next failure forces a reactive scramble. That cycle is not a maintenance program. It’s documentation theater.
What actually changes plant reliability is treating the audit as the first step in a corrective action process, not as the product itself. In my experience, the plants that get this right share one trait: someone with authority owns the findings list, not just the audit report. When a Tier 1 finding has a name next to it and a 30-day deadline, it gets fixed.
I’m cautiously optimistic about AI tools in this space. The efficiency gains are real. But I’ve seen teams adopt CMMS dashboards and still fail to act because the organizational accountability structure was never there to begin with. Technology surfaces the problems faster. It does not fix the culture that ignores them.
My advice is to start with the human accountability layer, assign ownership of every open finding, set hard deadlines, and review status monthly. Then layer in the tools. Doing it the other way around gives you very expensive reports that nobody reads.
— Monica
